Tower-LCC Firmware C7e1 Update.

Be sure that you are using JMRI version 4.8 or later. If you have nodes #02.01.57.00.00.76 or earlier that have never been upgraded, then first go to Tower-LCC-Upgrade.html.

Using Firefox, Google Chrome, or Safari, (NOT Microsoft Edge) download the latest firmware. (e.g. 'TowerLCC_C7c_UPDATE.hex')

Note that the C7 upgrade will also update your existing configuration data which is stored in a different NVR chip. (see below)

Tower LCC Boot fixer:

The Tower LCC boot fixer upgrade will repair an issue that caused the Tower LCC to jump into boot mode if the power supply rise time is too slow. Make a backup of your CDI configuration and then install the boot loader upgrade prior to installing the C7e1 update. Click here for more information.

Be sure that you are using JMRI version 4.8 or later.

Using Firefox, Google Chrome, or Safari, (NOT Microsoft Edge) download the latest firmware. (e.g. 'TowerLCC_C7e1_UPDATE.hex')

C7e1 Updates Include:

• Correction to the LCC query behavior on the cascade items. The original behavior could cause cascaded turnouts to randomly change positions when another node such as JMRI signed onto the network after a cascaded route has been set.
• Added a new "Cascade" option to simplify the setup of cascaded turnouts.
• Re-ordered some CDI display items for clarity.

C7c Updates Include:

• Added a back door to reset the CDI to factory defaults in the field. (used if you get the unit into a tight loop and can not escape)


The way the back door works is as follows:

1. power down the node;
2. press the GOLD button while powering up, the GOLD led should start to blink @ 1 Hz, then release;
3. the node is now in boot loader mode -> download the appropriate UPDATE firmware (attached);
4. toward the end of the download, press and hold the BLUE button;
   4a) should step 4 be skipped, the node starts up with CDI values as they were before, so the event loop restarts;
   4b) in this case, power down the node and press and hold the BLUE button while powering up;
5. hold the BLUE button for at least 15 seconds, until the GOLD, BLUE and RED led starts to flicker;
6. release the BLUE button, done!

• both delay times in I/O-section wouldn't properly clear when set to 0 seconds or 0 minutes (solved)
• read only transmitter circuit events could not be updated with the same events from a replacement node (solved)
• datagrams requiring a reply didn't send an acknowledge with reply pending (solved)

C7a Updates Include:

• C7a is a bug fix for an obscure combination of actions failing to send its EventIDs
• The C7 CDI has simplified the 'Output Function' and 'Input Function' options to clarify their results. The ability of the node to support bi-directional line use has been improved. (Sample Mode) Note: Sample mode requires that any input line include a 1K series resistor in its circuit to prevent output port driver damage by direct connections to 5V or 0V levels. (such as with a push button or contact) Any input lines used without this resistor must never have the [Output Function] enabled. Warning! I/O Port damage may result if this restriction is not honored.
• The C7 upgrade adds an action option to cascade 'Group' conditionals. This now allows logic functions of the form '(V1a OR V2a) AND (V1b OR V2b)', '(V1a AND V2a) OR (V1b AND V2b)', or similar to be formed by combining successive conditionals. Be sure to add the same options to both the 'when true' and 'when false' actions of the conditional being extended.

  Any 'Blocked' conditionals will be skipped over by the combining logic. Be sure to not specify [AND with Next] or [OR with Next] on a 'Last (Single)' conditional because it would have no practical results.
• Be sure to restart JMRI after doing the upgrade, because JMRI caches the CDI display information, and the CDI format changes will not appear until JMRI restarts and reloads the new data from the upgraded node.
• The Version C7 update does convert your previous line configuration options into the new format automatically, but this is not reversible back to C6. To revert to C6 load the C6 firmware, then restore your configuration from your C6 backup file.
• Be sure to create a new C7 backup file after doing the C7 upgrade because the backup file format has changed with this new version.

• We have changed the power initialization process to allow a node to initialize and operate with no other nodes present. This will allow small installations such as demo layouts and modules to operate without any other nodes or JMRI present. The node does require a power supply and terminators to be connected.

• Per user request, we have added a veto action to the 'Change' (Toggle) consumer action.

• Rev-C5 uses a delay of 8 ms from power up, then clears the flag, but the red led error might still get triggered if the CAN Receive FIFO isn't emptied fast enough within that time. With rev-C5a we now hold back the red led error until the message 'Node Initialization Complete' is sent, which takes at least 200 ms to complete. Any data received before the node has established its alias isn't required to be handled.
• We also made a minor update to the Power Monitor. If the PowerOK event gets changed by the user, it gets rehashed so that is is effective immediately. The PowerOK event now responds to Identify Producer when queried, if the power monitor is active.

C5a also includes all C5 updates:

• In the CDI Configuration Tool, writing the Node Description field erased the I/O-Line-1 Description field; now fixed;
• A Node Power Monitor is added; the R/B/G leds remain lit if the node voltage is above 3.0V, but below ~4.8V internally (8V* on the bus) the node will not startup;
• If the node internal voltage is above ~4.8V for more than 1 second, the R/B/G leds will go dark, the node initializes its alias and starts normal operations;
• If the node internal voltage drops below ~4.4V, the node is de-initialized and a user-configurable (optional) 'PowerNotOk' event message is sent, the node reboots within 50ms (de-initialization means the node inhibits all CAN-bus messages (except 'PowerNotOK') and FRAM read/writes); the PowerNotOK eventID is stored in EEPROM, so it doesn't need to access FRAM in a low power situation;

• On reboot from PowerNotOK (brown-out), the well-known 'Node Power Failed' message and user-configurable (optional) 'PowerOK' message are sent;
• On (re)boot from any other event (power on, reset message, firmware download, factory reset) these 'Node Power Failed' messages will not be sent;
• The node Alias is now saved to EEPROM; upon (re)boot this stored alias will now be used instead of freshly allocating it from the NodeID and risking an alias 'collision' with other nodes, causing multiple nodes to re-allocate their alias; this can be useful on CAN-bus power dropouts, where one (or more) node(s) may reboot where others continue to operate;
• The CDI XML is partially re-written to get rid of the 'Child' references in the CDI Configuration Tool;
• All previous updates and fixes through C4b.

IMPORTANT NOTICE: Because the CDI now uses different names for many variables, all existing CDI backup files created with older node firmware (before rev. C5) have become outdated. The C5-UPDATE doesn't affect your existing configuration, so it is strongly advised to create a new backup file immediately after updating to rev. C5.

Note: The Tower LCC includes a switching supply to provide power to its daughter cards efficiently. This means that it requires at least 8V from the bus to start up. This exceeds the current official 7.5V OpenLCB node operating minimum. This upgrade enforces that exception by preventing normal operation if the bus voltage is not sufficient.

Note: Version C5 stores its Virtual Track Circuit information in a different format than version B5 did. If you are updating directly from B5 to C7 You will need to re configure the track circuit section after an upgrade. Do NOT restore a configuration saved from an earlier firmware version. It will destroy your virtual track circuit information.

When ever an update to your Tower LCC firmware is needed, a program such as "Firmware Update" in JMRI version 4.24 or ladvisedater is . Download the latest firmware version to your local JMRI User Files folder or someplace where you can easily access it.

To enter Firmware update mode:

1. Start JMRI and select "LCC".

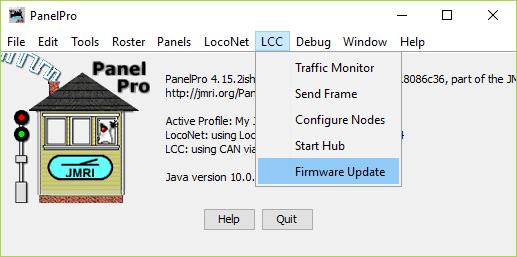

2. Select ‘Firmware Update’ from the LCC drop down list.

3. Click ‘Select’ to pick a firmware file.

4. From the file menu, select: 'TowerLCC_C7a_UPDATE.hex' or the latest upgrade available.
5. Select your 'Target Node ID'.
6. Optionally you may check the ‘Lock Node’ check box to take the node off line during the upgrade.
7. Click the 'Load' button to initiate the download to Tower-LCC revision C7.



8. Wait until 'updating device firmware..' progress bar is complete and shows 'Operation Complete'.
9. Open the OpenLCB Network Tree window. (LCC-Configure Nodes)
10. The updated node should now show 'Model: Tower-LCC' and 'Software Version: rev-C6'.
11. Any errors will be shown in the lower window ticker tape display.

If the node does not automatically enter boot mode and start the upgrade it may be forced into boot mode by un-powering it, then holding down the ‘Gold’ button as you power it up again. The gold LED should start flashing to indicate that it is in forced boot mode. This will also likely be required after a failed upgrade attempt.
