Uncoupler Electrical Information
Schematic PNP two diode
Obviously you may use some other power transistor that you have around
the bench. If you use a PNP unit, just reverse the diode directions and
the blue and green decoder leads.

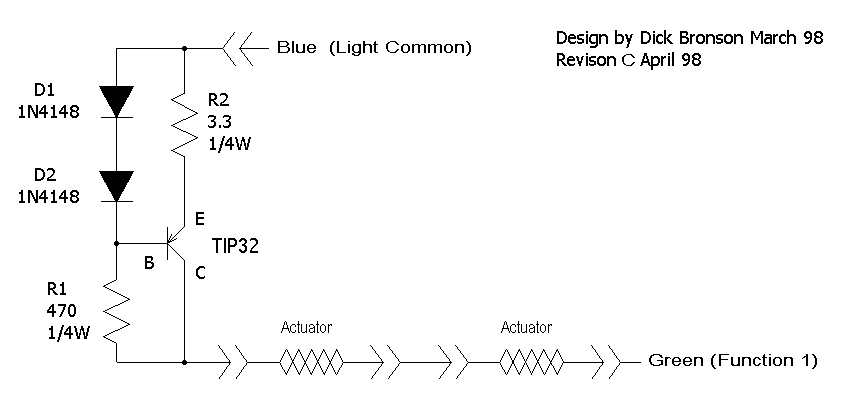

Fig. 8c PNP two diode Muscle Wire current limiter circuit.
